Warp Knitting | Powernet Structure for Lingerie

Karl Mayer Pattern No. 148/09

(Design No .S-4002812)

From a high performance Raschel machine with four ground guide bars and CFRP bars.

Source : KWP 1/2010

This power-net structure for lingerie articles cuts a fine figure.In spite of its puristic appearance and cool touch,this is unsophisticated fabric unveil its true qualities when its comes to such functional features as e.g holding,supporting,shaping and moulding.This stretch textile with specific elastic smoothes out unflattering curves,without restricting or even constricting one’s movements.Not only can the body stylist breathe a sigh of relief but the body can also take deep breath.The filigree mesh openings ensure a sufficient heat and moisture balance.

Pattern (finished fabric)
Stitch courses :  Weight : Finished fabric:	84/cm (set: 50/cm) 119 g/m 86 % of the knitting width
Finishing :	Relaxation,washing,drying,setting,bleaching,optical brightening,stentering
Machine
Machine type : Machine gauge : Number of guide bars: Machine width : Number of pattern disks : Machine speed : Production (finished fabric) :	RSE 4-1 ,CFRP E 32 (needles / 25.4 mm=1”) 4 170” (431 cm) 4 ( 24 M ) 2.500  min-1   17.8 running m/h (7.9 kg/h)

Bars	Material specification	% of material	Run-in rack
GB 1	dtex 44 f 12 polyamide 6 (Nylstar ®),deep dull,flat,round	37.7 %	800 mm / rack
GB 2	dtex 44 f 12 polyamide 6 (Nylstar ®),deep dull,flat,round	37.7 %	800 mm / rack
GB 3	dtex 320 elastane (Dorlanstan ®),V 550,elongation 25 %	12.3 %	45 mm / rack
GB 4	dtex 320 elastane (Dorlanstan ®),V 550,elongation 25 %	12.3 %	45 mm / rack

Bars	Lapping	Threading
GB 1	1-0 / 1-2 / 2-1 / 2-3 / 2-1 / 1-2 //	1 out ,1 in
GB 2	2-3 / 2-1 / 1-2 / 1-0 / 1-2 / 2-1 //	1 out ,1 in
GB 3	( 0-0 / 1-1 ) x 3 //	1 out ,1 in
GB 4	( 1-1 / 0-0 ) x 3 //	1 out ,1 in

Read More

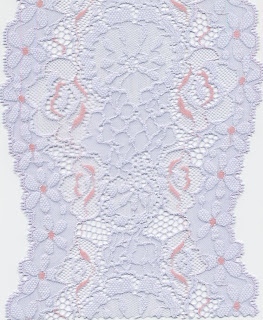

Warp Knitting Pattern | Sea of Flowers in Abstractly Modern Design

Karl Mayer Pattern No. 141/2007

(Design-No.42B 0015)

From Jacquardtronic Lace with 42 guide bars,from which 36 pattern guide bars,ground guide bar 1 (pillar stitch),1 Piezo Jacquard bar ( JB 45+46) and ground guide bar 47 (elastane)

This pattern make flowers blossom,being a charming mix of naive painting and abstract art with alienation effects.Marguerites as drawn by children encircle scenery of grounds with multiple structures,thick contours and plain,filled arched parts.Only a second glance reveals the ocean of blossoms and leaves.The created lace meets the modern taste,as well.



This development suggestion is intended for your information and guidance and is without obligation. No guarantee or liability of any kind can be undertaken.It is not our intention to infringe any existing patent rights.











Pattern (finished fabric)
Stitch courses	:	36/cm (set:18.5/cm)
Weight	:	17.9 g/m2
Finished fabric	:	92.0 % of the warping width
Finishing	:	Relaxing,washing,setting,dyeing
		drying,stentering
Machine
Machine	:	JL 42/1 B
Machine gauge	:	E 24 (needle/25.4 mm=1")
Machine width	:	132" (335 cm)
No. of guide bars	:	42
	:
Machine speed	:	630 min-1
Production (finish fabric)	:	10.5 running m/h
Material specification				Run-in per rack
GB 1		dtex 44 f 13 polyamide 6.6 bright		1200 mm/rack
PB 4+5		dtex 45 f 11 Grilon® C-140		pattern beam
PB 9+14		dtex 110 x3 x2 polyamide,Org.A666		creel
PB 10-13,15-38		dtex 78 f 68 x 4  polyamide,Meryl,FT,120 T/S A 5024 Moulinage		creel
PB 39-43		dtex 167 polyester flat,pink		creel
JB 45+46		dtex 44 f 13 polyamide 6.6		360 mm/rack
GB 47		dtex 156 Lycra® clear		200 mm/rack
Lapping			Threading
GB 1		1 - 0 / 0 - 1 //	Fully set
JB 45+46		0 - 0 / 2 -2 //	Fully set
GB 47		1 - 1 / 0 - 0 //	Fully set

Read More

Straight Graphics in Feminine and Fanciful Style | Warp Knitting Pattern

Karl Mayer Pattern No.111/2007

(Design No.TL43 0013)

From Textronic Lace with 43 guide bars from which 24 pattern guide bars in the front of the fall plate, 1 Piezo Jacquard bar (JB 33+34),14 Pattern bars behind the fall plate as well as ground guide bar 32 (pillar stitch) and ground guide bar 52 (elastane).

The lace presented below is the continuation of the new patterns of TL 43/1/24.Kept in soft pastel shades,the filigree elaborated quality shows play ful interpretation of the severe topic of squares.On the transparent,multiform ground the quads from the net structure in the chequered design limited as its parts by zig-zag edge in rich design.One of the two edges has completed by the gimp in floral design for delightful accentuation of the feminine  style of the predominantly straight world of motifs.This pattern is the product of the cooperation of Karl Mayer with the companies Invista,Moulinage du Plouy and Toulemonde.

 This development suggestion is intended for your information and guidance and is without obligation. No guarantee or liability of any kind can be undertaken.It is not our intention to infringe any existing patent rights.





Pattern (finished fabric)
Stitch courses	:	38/cm (set:21/cm)
Weight	:	23.4 g/m2
Finished fabric	:	92.0 % of the warping width
Finishing	:	Relaxing,washing,setting,dyeing
		drying,stentering
Machine
Machine	:	TL 43/1/24
Machine gauge	:	E 24 (nd./25.4 mm=1")
Machine width	:	134" (340 cm)
No. of guide bars	:	43
	:
Machine speed	:	600 [min⁻¹]
Production (finish fabric)	:	9.5 running m/h
Material specification				Run-in per rack
PB 1-12		dtex 156 x 2 polyamide,Tactel® BR.Org		Creel
PB 13-16		dtex 150 x 2 polyester,Brill,Multicolor No.122		Creel
PB 17-20		dtex 156 x 2 polyamide,Tactel® BR.Org		Creel
PB 21-24		dtex 150 x 2 polyester,Brill,Multicolor No.122		Creel
PB 27-28		dtex 45 f 11 co-polyamide,Grilon® C-140		Pattern beam
GB 32		dtex 44 f 11 polyamide 6.6		1170 mm/rack
JB 33+34		dtex 44 f 13 polyamide 6.6		330 mm/rack
PB 35+42		dtex 110 x3 x2 polyamide Org.575S		Creel
PB 36-41,44-49		dtex 167 viscose,REF V 117		Creel
GB 52		dtex 156 elastane-Lycra® clear		200 mm/rack
Lapping			Threading
GB 32		1 - 0 / 0 - 1 //	Fully set
JB 33+34		0 - 0 / 2 -2 //	Fully set
GB 52		1 - 1 / 0 - 0 //	Fully set
